I learned a lot building the vertical stabilizer. With
each new part it seemed there was a new tool I needed to learn how to use. The
hand rivet squeezer was used on the very first part. I quickly learned the value of
using clecos to hold parts together during assembly.
 |

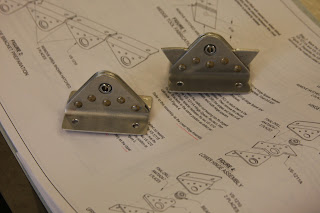

| The very first parts were these rudder hinge assemblies. |
 |
| The spar cap was first constructed for the vertical stabilizer. |
 |
| Then the skeleton assembly was constructed |
 |
| Finally the vertical stabilizer skin was attached. |
 |
| You can see how the clecos hold the skin before riveting. |
 |
| Nutplates were added with two flush rivets in dimpled holes to receive the screws to attach the leading edge. |
 |
 |
| This is Ron using the hand rivet squeezer attaching nutplates. |
 |
| The rudder's skin was attached here, then it was attached to the vertical stabilizer. |
